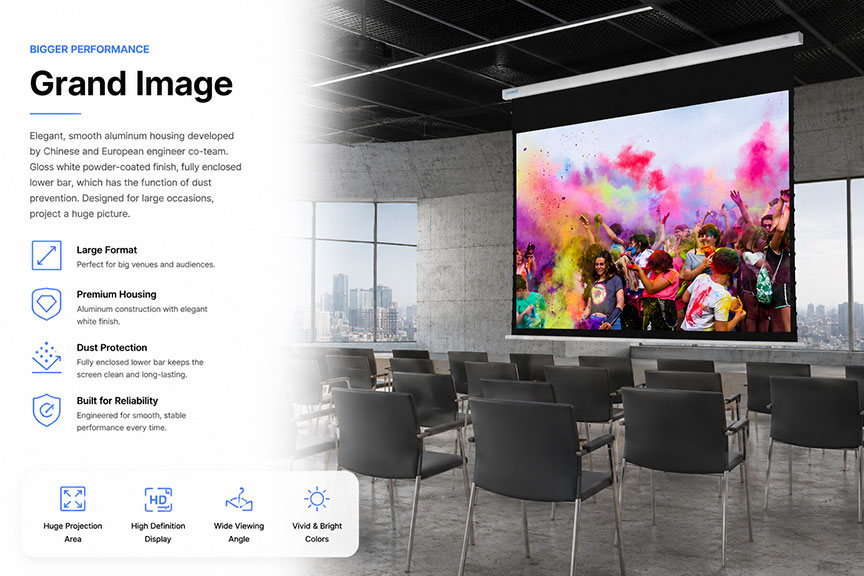

Designed for image widths from 600 cm to 900 cm. The heavy-duty aluminum housing measures 210 mm × 210 mm (8.27" × 8.27"), supporting large-format projection environments with exceptional stability. Ideal for worship facilities, theatres, museums, auditoriums, lecture halls, ballrooms, conference centers and commercial cinemas.
Premium aluminum housing engineered by an international design team. The elegant powder-coated finish and fully enclosed bottom bar help reduce dust accumulation while maintaining a clean appearance. Designed specifically for large venues where image impact matters.

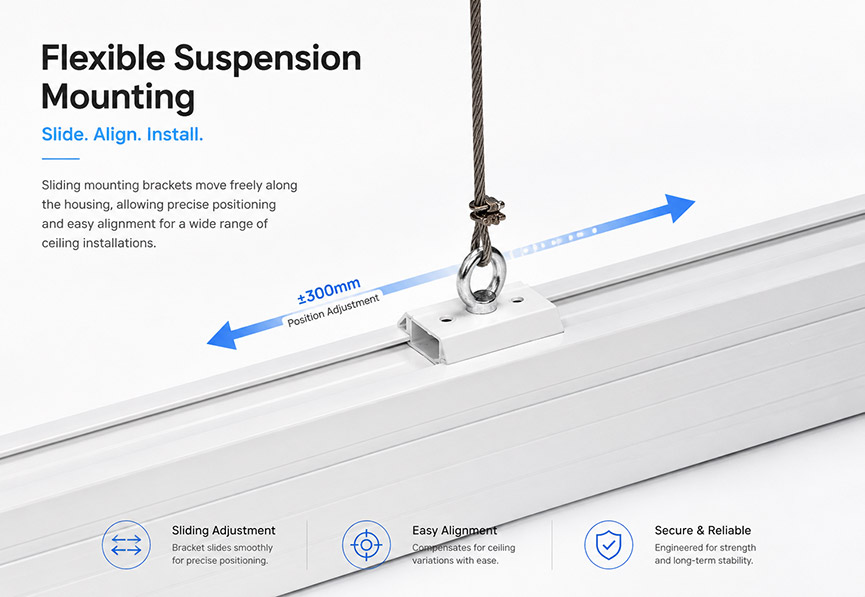

Sliding suspension brackets move freely along the housing, allowing precise alignment and easier installation in auditoriums, conference halls and large commercial projection environments.
〈 LATEST VIDEOS | LATEST PROJECT

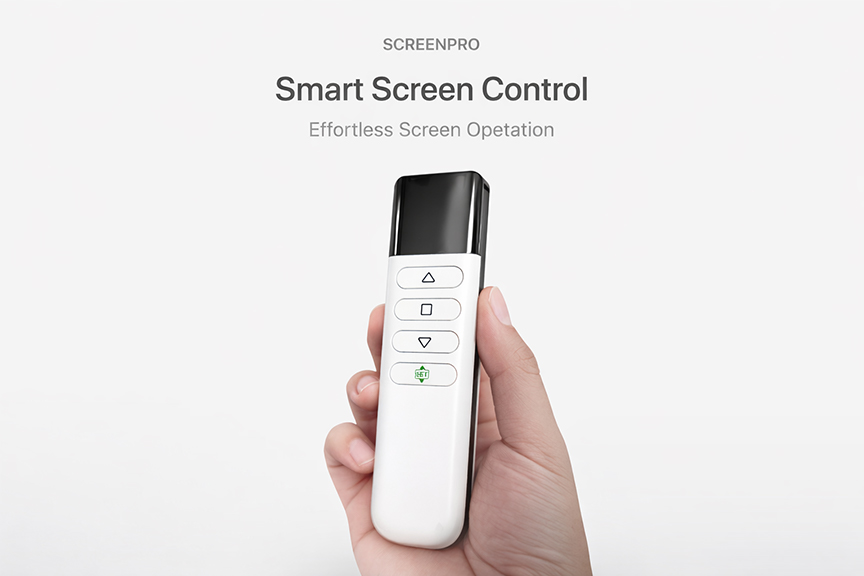

Powered by the SCREENPRO® R8 control platform with built-in 868MHz wireless communication. Compatible with RF remote control, dry contact integration, trigger systems and professional AV control environments.

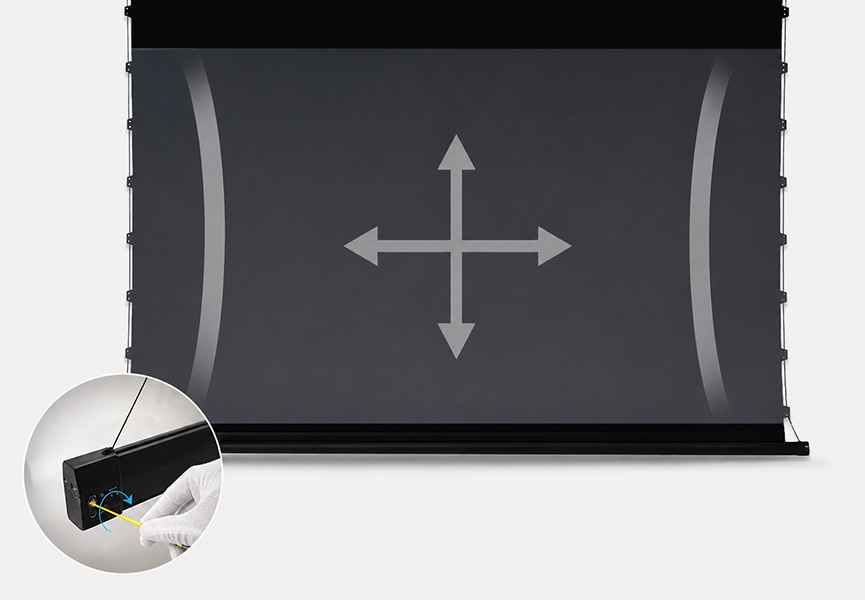

The tab-tension system maintains constant surface tension across the projection material, delivering a smooth viewing surface for high-resolution projection. A flatter screen helps preserve image geometry, focus uniformity and visual detail.
All in-ceiling electric projector screens come with a large black border, which can be adjusted with the Allen key regulator supplied with the screen.

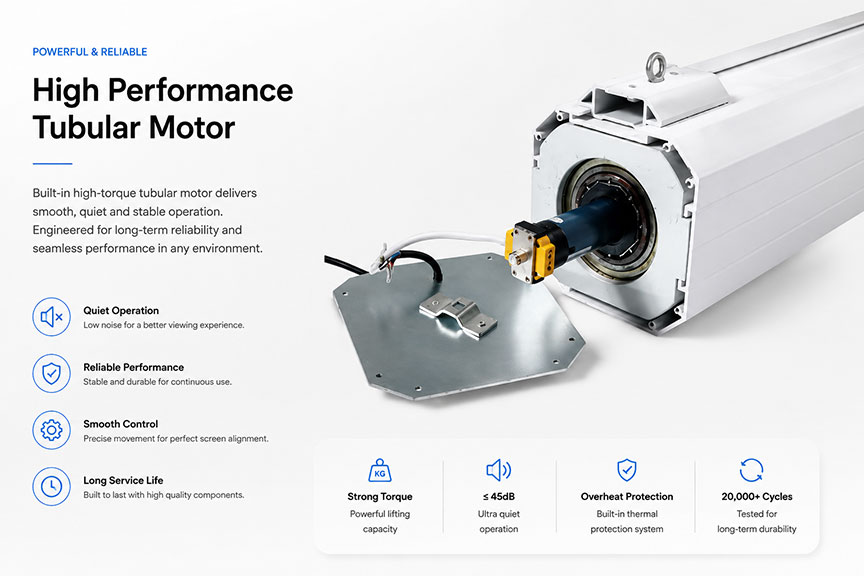

The removable internal roller assembly allows convenient servicing and motor replacement. Designed for long-term commercial operation with a quiet, high-performance tubular motor system.
The SCREENPRO synchronizer automatically coordinates projector power and screen movement. Compatible with a wide range of projector models, allowing a seamless one-touch viewing experience without requiring a dedicated trigger output.
Search, filter, and compare Topview / Topview PLUS large venue screen sizes. Switch units between millimeters and inches, then export as PDF when needed.
| Format | Diag. Size D |
Viewing Size W × H mm |
Black Border mm | Screen Overall Length L mm |
Screen Overall Height B mm |
Wooden Crate Packaging mm |
Note | ||
|---|---|---|---|---|---|---|---|---|---|
| Top B1 |
Bottom B2 |
L/R A |
|||||||
| 16:9 | 260" | 5755 × 3237 | 200 | 50 | 75 | 6173 | 3747 | 305 × 435 × 6360 | Topview |
| 16:10 | 270" | 5815 × 3634 | 200 | 50 | 75 | 6234 | 4145 | 305 × 435 × 6420 | Topview |
All dimensions are for reference only. Custom sizes, screen materials and installation requirements are available upon request.
| Format | Dig. | Viewing | Border mm | Overall Height A |
Product Dim | Slot Size | N.W kg |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | B3 | B2 | L/R(B1) | L | E | D | L | W | H | ||||
| 4:3 | 200 | 4064 | 3048 | 80 | 80 | 50 | 3413 | 4374 | 156 | 205 | 4474 | 220 | 300 | - |
| 4:3 | 220 | 4470 | 3353 | 80 | 80 | 50 | 3718 | 4780 | 156 | 205 | 4880 | 220 | 300 | 69.4 |
| 4:3 | 250 | 5080 | 3810 | 80 | 80 | 50 | 4175 | 5390 | 156 | 205 | 5490 | 220 | 300 | 79.4 |
| 4:3 | 275 | 5588 | 4191 | 80 | 80 | 50 | 4556 | 5898 | 156 | 205 | 5998 | 220 | 300 | 88.3 |
| 4:3 | 300 | 6096 | 4572 | 80 | 80 | 50 | 4937 | 6406 | 156 | 205 | 6506 | 220 | 300 | 97.5 |
| 16:9 | 200 | 4428 | 2491 | 200 | 80 | 50 | 2976 | 4738 | 156 | 205 | 4838 | 220 | 300 | 65.0 |
| 16:9 | 220 | 4870 | 2740 | 200 | 80 | 50 | 3225 | 5180 | 156 | 205 | 5280 | 220 | 300 | 71.5 |
| 16:9 | 250 | 5535 | 3113 | 200 | 80 | 50 | 3598 | 5845 | 156 | 205 | 5945 | 220 | 300 | 81.6 |
| 16:9 | 275 | 6088 | 3424 | 200 | 80 | 50 | 3909 | 6398 | 156 | 205 | 6498 | 220 | 300 | 90.4 |
| 16:9 | 300 | 6641 | 3736 | 200 | 80 | 50 | 4221 | 6951 | 156 | 205 | 7051 | 220 | 300 | 99.6 |
| 16:10 | 200 | 4308 | 2692 | 200 | 80 | 50 | 3177 | 4618 | 156 | 205 | 4718 | 220 | 300 | 64.5 |
| 16:10 | 220 | 4739 | 2962 | 200 | 80 | 50 | 3447 | 5049 | 156 | 205 | 5149 | 220 | 300 | 71.0 |
| 16:10 | 250 | 5385 | 3365 | 200 | 80 | 50 | 3850 | 5695 | 156 | 205 | 5795 | 220 | 300 | 81.1 |
| 16:10 | 275 | 5923 | 3702 | 200 | 80 | 50 | 4187 | 6233 | 156 | 205 | 6333 | 220 | 300 | 90.0 |
| 16:10 | 300 | 6462 | 4039 | 200 | 80 | 50 | 4524 | 6772 | 156 | 205 | 6872 | 220 | 300 | 99.2 |
Dimensions are shown in millimeters unless otherwise specified. Please confirm final dimensions with SCREENPRO before ordering.
Choose from multiple SCREENPRO projection materials for large venue, commercial AV, education, cinema and custom installation projects.
Matte white projection fabric for general-purpose front projection applications.
Micro-perforated acoustic transparent fabric for behind-screen speaker setups.
Long-throw ALR material designed to improve contrast under ambient light.
High ALR micro-perforated fabric for large-format professional projection.
Rear projection fabric for professional installations requiring hidden projector placement.
Yes. SCREENPRO TT Series supports custom sizes, screen materials, installation structures and OEM/ODM solutions for commercial AV and large venue applications.
TT Series is designed for auditoriums, conference rooms, education, churches, cinema halls, command centers, event venues and other large format projection environments.
Multiple projection materials are available including standard PVC, Acoustic Transparent, Rear Projection, High Gain, Perforated and Ambient Light Rejecting (ALR) fabrics.
Yes. SCREENPRO offers woven and perforated acoustic transparent materials that allow speakers to be installed behind the screen while maintaining excellent image performance.
Yes. TT Series supports wall mounting, ceiling mounting, suspended installation and customized installation structures depending on project requirements.
Yes. TT Series is engineered for large format projection applications and supports oversized custom dimensions for commercial and professional AV installations.
Depending on configuration, TT Series can support wall switch control, IR remote, RF remote, trigger integration and RS232 control for commercial AV systems.
Yes. SCREENPRO provides OEM and ODM manufacturing services including customized branding, packaging and project-based engineering support.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
