【Recommended For Normal/Standard/Long Throw Projector Use】
When it comes to the outer edges of the screen, don’t settle for anything less than black velvet. The light-absorbing qualities of black velvet are necessary for an optimal viewing experience. The first-class aluminium frame ensures structural rigidity. The handcrafted black velvet frame provides the ultimate black image border, while maintaining acoustic transparency.
With perforations less than 0.01” in diameter and over 17,210 perforations per square foot, sound from speakers placed behind the screen can pass through naturally. This creates an acoustically transparent screen solution for immersive surround sound and a true cinema-style speaker-behind-screen setup.
The multi-chromogenic layer provides excellent image quality. With additional black backing that blocks light from the rear of the screen, it helps enhance your home cinema experience.
The micro-perforations are so small that they are nearly unnoticeable to the naked eye and completely invisible when your projector is on. Audio from speakers behind the screen can pass through easily, creating both excellent image performance and immersive sound.

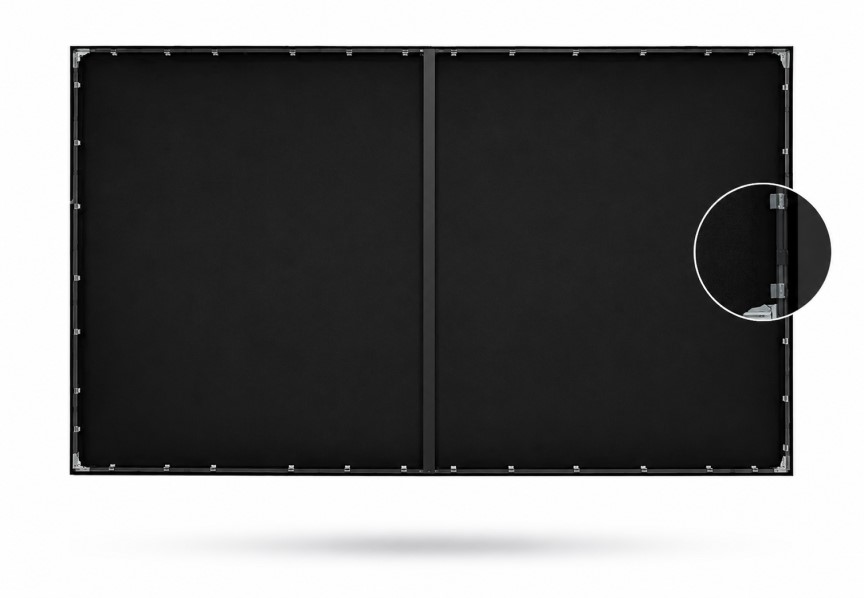

Standard acoustically transparent woven black backing fabric helps reduce rear wall light reflections while maximizing perceived contrast.
SCREENPRO Products’ pressing plate tensioning system makes the screen 100% wrinkle-free. No wrinkles mean that you get a clear, colorful, and uniform picture. Assembly is not complicated. The step-by-step instructions in our manuals make the tension system easy to put together.
Due to the elastic shrinkage of the screen material, the fabric size may be slightly smaller before installation. We provide not only a cross-head screwdriver, but also an additional installation tool to help fit the screen material into the frame more easily and efficiently.
T8 and TM are both acoustic transparent screen materials. The key difference is that T8 includes ALR anti-light performance, while TM is a white micro-perforated acoustic transparent material for controlled lighting environments.
Compatible with 3D movies, 4K, HDTV, PPT, pictures, and games, with a 165° viewing angle. When paired with an HD projector, you can enjoy cinema-quality entertainment at home.
SCREENPRO Size Chart Pro Ultra
The SCREENPRO® Fixed Frame Screen - Flat is designed for home theater rooms, commercial AV spaces, and large-format projection installations. Compare viewing size, overall dimensions, frame width, package dimensions, and approximate weight before planning your project.
Confirm projection format, viewing size, wall space, package size, and frame width before final quotation.
Dimension Reference
Use the diagram together with the specification table to confirm viewing size, overall dimensions, frame width, package dimensions, and project planning requirements.
Core viewing size, overall dimensions, and weight for fast model comparison.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Weight |
|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2334 mm | 1365 mm | 13.1 kg |
| 16:9 | 106" | 2346 × 1319 mm | 2466 mm | 1440 mm | 13.7 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2555 mm | 1490 mm | 14.4 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2776 mm | 1614 mm | 15.3 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3166 mm | 1859 mm | 24.0 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3498 mm | 2046 mm | 26.0 kg |
| 16:9 | 160" | 3541 × 1992 mm | 3720 mm | 2170 mm | 27.7 kg |
| 16:9 | 180" | 3984 × 2241 mm | 4162 mm | 2419 mm | 30.5 kg |
| 16:9 | 200" | 4427 × 2490 mm | 4605 mm | 2668 mm | 33.3 kg |
| 16:9 | 220" | 4869 × 2739 mm | 5048 mm | 2917 mm | 36.4 kg |
| 16:9 | 250" | 5534 × 3112 mm | 5712 mm | 3291 mm | 41.5 kg |
| 16:9 | 300" | 6640 × 3735 mm | 6819 mm | 3913 mm | 49.8 kg |
| 16:10 | 100" | 2153 × 1346 mm | 2274 mm | 1466 mm | 13.7 kg |
| 16:10 | 106" | 2283 × 1426 mm | 2403 mm | 1547 mm | 14.4 kg |
| 16:10 | 110" | 2369 × 1480 mm | 2489 mm | 1601 mm | 14.9 kg |
| 16:10 | 120" | 2584 × 1615 mm | 2705 mm | 1735 mm | 16.0 kg |
| 16:10 | 133" | 2864 × 1790 mm | 2985 mm | 1910 mm | 17.7 kg |
| 16:10 | 135" | 2907 × 1817 mm | 3028 mm | 1937 mm | 18.0 kg |
| 16:10 | 135" | 2907 × 1817 mm | 3086 mm | 1995 mm | 22.6 kg |
| 16:10 | 150" | 3230 × 2019 mm | 3409 mm | 2197 mm | 24.6 kg |
| 16:10 | 160" | 3446 × 2153 mm | 3624 mm | 2332 mm | 25.7 kg |
| 16:10 | 180" | 3877 × 2423 mm | 4055 mm | 2601 mm | 28.1 kg |
| 16:10 | 200" | 4307 × 2692 mm | 4486 mm | 2870 mm | 30.4 kg |
| 16:10 | 220" | 4738 × 2961 mm | 4917 mm | 3140 mm | 32.4 kg |
| 16:10 | 250" | 5384 × 3365 mm | 5563 mm | 3544 mm | 35.2 kg |
| 16:10 | 300" | 6461 × 4038 mm | 6640 mm | 4217 mm | 42.3 kg |
| 2.35:1 | 100" | 2337 × 994 mm | 2457 mm | 1115 mm | 12.2 kg |
| 2.35:1 | 106" | 2477 × 1054 mm | 2598 mm | 1174 mm | 12.9 kg |
| 2.35:1 | 119" | 2781 × 1183 mm | 2901 mm | 1304 mm | 14.3 kg |
| 2.35:1 | 126" | 2945 × 1253 mm | 3123 mm | 1431 mm | 15.1 kg |
| 2.35:1 | 135" | 3155 × 1342 mm | 3333 mm | 1521 mm | 23.4 kg |
| 2.35:1 | 150" | 3505 × 1491 mm | 3684 mm | 1670 mm | 25.8 kg |
| 2.35:1 | 165" | 3856 × 1641 mm | 4035 mm | 1819 mm | 28.4 kg |
| 2.35:1 | 180" | 4207 × 1790 mm | 4385 mm | 1968 mm | 29.5 kg |
| 2.35:1 | 200" | 4674 × 1989 mm | 4853 mm | 2167 mm | 31.8 kg |
| 2.35:1 | 250" | 5843 × 2486 mm | 6021 mm | 2664 mm | 35.4 kg |
| 2.35:1 | 300" | 7011 × 2983 mm | 7190 mm | 3162 mm | 42.5 kg |
| 2.35:1 | 350" | 8180 × 3481 mm | 8359 mm | 3659 mm | 49.5 kg |
Engineering & Installation
View detailed specifications including frame width, overall dimensions, T value, package dimensions, and approximate weight.
Detailed project-level dimensions for SCREENPRO Fixed Frame Screen - Flat.
| Format | Diag. Size | Viewing Size | Overall Length | Overall Height | Frame | T | Package Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| 16:9 | 100" | 2213 × 1245 mm | 2334 mm | 1365 mm | 60 mm | 656 mm | 270 × 110 × 1440 mm | 13.1 kg |
| 16:9 | 106" | 2346 × 1319 mm | 2466 mm | 1440 mm | 60 mm | 693 mm | 270 × 110 × 1514 mm | 13.7 kg |
| 16:9 | 110" | 2434 × 1369 mm | 2555 mm | 1490 mm | 60 mm | 718 mm | 270 × 110 × 1564 mm | 14.4 kg |
| 16:9 | 120" | 2656 × 1494 mm | 2776 mm | 1614 mm | 60 mm | 780 mm | 270 × 110 × 1690 mm | 15.3 kg |
| 16:9 | 135" | 2988 × 1680 mm | 3166 mm | 1859 mm | 90 mm | 902 mm | 270 × 130 × 1935 mm | 24.0 kg |
| 16:9 | 150" | 3320 × 1867 mm | 3498 mm | 2046 mm | 90 mm | 996 mm | 270 × 130 × 2120 mm | 26.0 kg |
SCREENPRO supports fixed frame screen planning, custom size recommendations, project quotation, and OEM / ODM customization.
Explore compatible SCREENPRO screen materials for various projection environments, including matte white, acoustic transparent, ALR, anti-speckle, and rear-projection applications.
Matte white screen material for standard projection and natural color reproduction.
Micro-perforated acoustic transparent material for speaker-behind-screen setups.
Woven acoustic transparent fabric for natural sound transmission and reduced moiré effect.
Woven acoustic transparent anti-speckle material for RGB triple laser and hidden speaker setups.
High-contrast ALR material for long-throw projection and enhanced black levels.
ALR micro-perforated material for long-throw projection with acoustic transparency.
Anti-speckle grey projection fabric for RGB triple laser projectors with enhanced contrast.
Rear projection material for hidden projector installations and special display applications.
Everything you may want to know before choosing a SCREENPRO® projection screen.
The ideal screen material depends on your projector type, room lighting, and installation environment.
If you are unsure, SCREENPRO can recommend a suitable projection screen solution based on your projector model and room layout.
A standard white screen is best for dark or controlled lighting rooms. An ALR screen is designed to reduce the influence of ambient light and improve perceived contrast in brighter environments.
The best screen for contrast depends on your projector type and room lighting. In dark rooms, a high-quality white or acoustic transparent screen can deliver natural contrast. In rooms with ambient light, ALR screen materials help maintain deeper blacks and stronger perceived contrast.
For RGB triple laser projectors, SCREENPRO recommends 3C Anti-Speckle or 3W Woven Anti-Speckle materials. These materials are designed to reduce laser speckle while preserving image contrast, color performance and viewing comfort.
Technically yes, but a dedicated UST ALR screen usually provides better image performance. UST projectors project light from a steep angle, so a normal screen may show lower contrast, uneven brightness or visible texture depending on the material.
Screen size should be selected according to viewing distance, room size, projector brightness and installation space.
For commercial, church, education or large venue applications, custom screen size recommendations may be required.
3C is suitable for many triple laser projection setups, while 3W is recommended when stronger speckle reduction and acoustic transparency are required.
Most SCREENPRO® floor-rising screens are designed as freestanding systems and do not require wall fixation for normal use. For special installations, wall brackets or additional securing methods may be recommended depending on the environment.
Temporary waves or wrinkles may be caused by transportation, temperature changes, humidity, storage conditions or installation tension. Tab-tensioned and fixed frame structures generally provide better long-term flatness than non-tensioned or folding screen systems.
Many SCREENPRO motorized projection screens support RF remote control, 12V trigger, USB trigger, RS232, Tuya Smart, Alexa and Google Assistant integration. Compatibility may vary depending on the motor and control system selected.
Yes. Material samples are available for testing before purchasing a complete screen system. Samples can help you compare brightness, contrast, texture, acoustic transparency and anti-speckle performance in your own environment.
Yes. SCREENPRO supports customized screen sizes depending on the screen type, material, aspect ratio and application requirements. Custom options are commonly used for home cinema, commercial spaces, conference rooms, churches and OEM/ODM projects.
Warranty coverage varies by product category. Motorized systems, projection surfaces and accessories are covered under SCREENPRO warranty policies. Please contact SCREENPRO for specific warranty details based on your product model and installation type.
Explore compatible projection screen systems, materials and installation solutions for your project.
