[Motorized ALR screen series]
• Standard 868MHz RF (Radio Frequency) remote control/IR (Infrared) control is optional
• Ready to use, NO ASSEMBLY REQUIRED!
• With an arm expansion structure, the ultimate smooth-viewing experience with anti-wind arm technology for a perfectly flat, ripple-free screen every time.
• Better ALR effect (93%), better visual effect.
• Providing an outstanding contrast ratio and 178-degree viewing angle.
• Compatible with a 3rd party control system, ideal for use in meeting rooms, retail stores, home entertainment, and residential applications.
• Housing color option: White/Black
• Screen size up to a seamless 150-inch (130.7" x 73.5") in 16:9.
UST projectors allow displaying a 150-inch image from a short distance(about 16"/40cm).
At SCREEN PRO, we offer an optical revolution T-Prism that makes all the difference. This technical improvement yields a brighter, sharper image and an enhanced ultimate viewing experience, whether the projector is sitting above or below the bottom of the image
See more immaculate and brighter colors than ever
See the world come vividly to life with unprecedented color and pure black contrast. T Prism Compared with the standard white material, T-Prism not only delivers higher contrast but also ALR features, so you won’t miss a single detail in dazzling light or deep shadow.
A new, more contemporary and fresh version has emerged, adapting this style to the present day without losing its essence
The innovative arm expansion design allows the screen to be mounted closer to the air outlet without compromising stability or performance. This unique feature ensures that the screen remains unaffected by airflow, eliminating any surface vibrations or distortions that could disrupt your viewing experience. Users enjoy a consistently clear and steady image, even in environments with active ventilation, whether in a conference room, classroom, or home theater. See the world come vividly to life with unprecedented color and pure black contrast. SCREENPRO T Prism Compared with the standard white material, T-Prism delivers higher contrast and ALR features; you won’t miss a detail in dazzling light or deep shadow.
Standard version - projector below the screen
With the standard version(Position A), the projector should be mounted below the screen for optimum image quality.
Reversed version - projector above the screen
With the Position B version, the projector is mounted above the screen to simplify the desktop setting.
ScreenPro Retractable Ceiling Wall Mount Projection Screen
Unlike standard electric screens, our innovative arm design keeps the surface perfectly smooth, even in breezy conditions—no waves, just flawless viewing. UST projectors allow displaying a 150-inch image from a short distance(about 16"/40cm) and provide that giant flat-panel TV appearance at a fraction of the cost. At SCREEN PRO, we offer an optical revolution with our T-Prism, making all the difference to your viewing experience.
〈 WATCH THE INSTALLATION VIDEO?
ALR (Ambient Light Rejecting) screens designed for Laser TV/UST (Ultra Short Throw) projectors, carrying vivid high-definition images regardless of ambient light, brands such as: SAMSUNG | BenQ | XIAOMI | Epson | Hitachi| LG | Optoma | Sony | ViewSonic, etc. Enables compatibility with 8K resolution projectors.
Ready to use, no assembly required, enjoy a true cinematic experience at home. You can maximize room space without sacrificing performance. This makes it an excellent choice for compact meeting rooms, classrooms with limited wall space, or home setups where aesthetics and functionality go hand in hand. With the laser technology, you no longer suffer from casting shadows when walking across the room, ensuring you get an uninterrupted view.
T-Prism optical material technology allows the display of true image brightness, color saturation, and contrast for superior picture performance. Unlike others that are restricted by material structural technology, T-Prism is capable of 150 inches of extreme realism and motorized designs.
| LEARN MORE |
SCREENPRO retractable projector table projects up to 150" with the cabinet close to the wall. Enlarge surface area, compatible with 99% of laser projectors on the market. Automatically slides out/back when powering on/off your projector.
| FIND OUT MORE |
At SCREENPRO, we discover and produce a wide range of premium materials for you to choose from, to respond to different application sites and projection environments.
Go ahead and project on a fabric sample first. If you have any questions, we are here to help.
| SHOP NOW |
We send packages overseas and ensure that your screen is securely wrapped to prevent damage. The inner layer of the carton package consists of a pearl cotton and foam board buffer layer, while the outer frame is made of customized solid wood to guarantee that the product arrives in good condition. You can relax and wait for it to arrive at your doorstep.
At SCREENPRO, we're proud of our wide selection of high-quality projection screens. Please refer to the chart below to help quickly find the right screen model with the right technical capabilities for your Home Theater project.

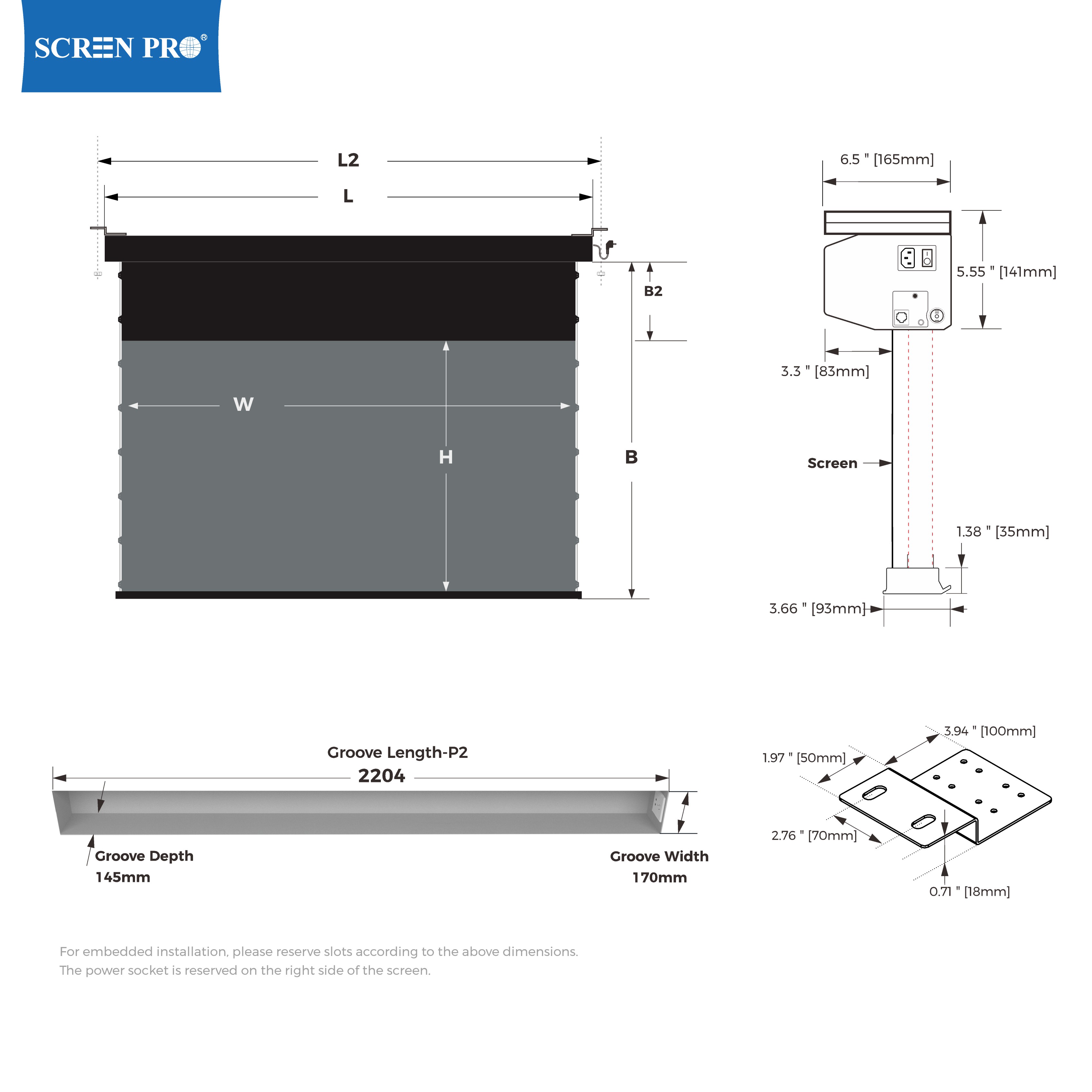

SIZE <Unit:mm>
| SCREENPRO Motorized ALR Screen For UST Screen - ZeroWave | Unit: mm | ||||||||||||||
| FORMAT | DIAG.SIZE | VIEWING SIZE | BLACK BORDER | SCREEN OVERALL LENGTH | SCREEN OVERALL HEIGHT | SCREEN OVERALL LENGTH | PACKAGE DIMENSIONS | Ceiling cut out size (LxWxD) | APPROX. WEIGHT | NOTE | |||||
| Top | Bottom | (L/R) | CEILING SLOT DIMENSION | ||||||||||||
| D | WxH | B2 | B1 | A | L | B | L3 | L1xW1xH1 | P2 | H2 | W2 | Kg | Lbs | wooden crate box | |
| 16:9 | 84˝ | 1859x1046 | 275 | 35 | 55 | 2094 | 1356 | 2144 | 2182x230x180 | 2204 | 145 | 170 | 26 | 57 | |
| 92˝ | 2037x1145 | 275 | 35 | 55 | 2272 | 1453 | 2322 | 2360x230x180 | 2382 | 145 | 170 | 29 | 64 | ||
| 100˝ | 2214x1245 | 275 | 35 | 55 | 2449 | 1555 | 2499 | 2520x230x180 | 2559 | 145 | 170 | 32 | 70 | ||
| 110˝ | 2435x1370 | 275 | 35 | 55 | 2670 | 1680 | 2720 | 2730x230x180 | 2780 | 145 | 170 | 34 | 75 | ||
| 120˝ | 2656x1494 | 275 | 35 | 55 | 2891 | 1804 | 2941 | 2960x230x180 | 3001 | 145 | 170 | 37 | 81 | ||
| 135˝ | 2988x1681 | 225 | 35 | 55 | 3223 | 1941 | 3273 | 3300x230x180 | 3333 | 145 | 170 | 40 | 88 | 3330x360x260(49kgs) | |
| 150˝ | 3320x1868 | 175 | 35 | 55 | 3555 | 2078 | 3605 | 3630x230x180 | 3665 | 145 | 170 | 44 | 97 | 3660x360x260(62kgs) | |
NOTE:
L+100mm = SCREEN OVERALL LENGTH
What is T-Prism?
SCREENPRO® T-Prism is an ambient-light–rejection (ALR) screen material that uses a specialized trapezoidal optical micro-structure. This structure physically separates natural ambient light from the light coming from an ultra-short-throw (UST) projector.
The light-absorbing surface attenuates ambient light by approximately 86%, enabling effective ALR performance. On the reflective surface, a multi-layer directional coating is applied to optimize contrast, color accuracy, gain, and viewing angle. As a result, roughly 85% of the projector’s light is directed back toward the viewer’s eyes, maintaining image brightness and clarity even under natural lighting conditions.
This allows the screen to deliver consistent image quality in both day and night environments, and to preserve 4K UHD detail even in bright living rooms or other high-ambient-light spaces.
T-Prism Screen 4 Advantage
Remarks:
1. The flameproof rating is determined according to the safety level of France NF P92-507.
2.
A. "A-washing refers to cleaning the screen surface with a solution of 7% ethanol and 3% ether."
B. "Clean the screen with kitchen detergent and water. Note that acidic detergents should not be used on any screen surface."
Cleaning Steps:
1. Use a soft brush to remove general dust from the screen surface.
2. Dip a soft cloth in mild soapy liquid or neutral detergent to clean the screen surface.
3. Avoid using rough objects or clothes as they may damage the screen surface.
4. The screen surface has optical textures, so please wipe horizontally when cleaning the fabric and avoid wiping vertically or in a circular motion.
5. Please ensure that the screen is completely dry after cleaning.
WARNING!
- To prevent puncturing or scratching the screen surface, please avoid direct contact with sharp objects.
- Do not use organic solvents such as acetone, benzene, or alcohol to clean the screen as they can cause permanent damage
- Please avoid scratching the screen surface to prevent any damage or distortion to the display.
Sadly, it can not match the quick-fold series. Folding the screen may create creases in the material.
Yes, you can buy a screen material sample by clicking HERE.
110v / 220v. No power transformer is required. We ensure that the voltage is correct for your shipping address.
Yes, the size can be customized from 60 inches to 500 inches plus. Clicking HERE.
Projection Screens, Motorized Solutions, Theatre Supplies, Projection Systems, Audiovisual Accessories, ALR UST screens, Electric screens, Manual screens, Mobile screens, Fixed screens, In-ceiling screens, and Customizable.
A：Air Transport（By Air）
B：Water/Sea Transport（By Water/Sea）
C：Road/Truck Transport（By Road/Truck）
D：Rail Transport（By Rail）
E：Mail Transport（By Mail）
F：Other Transport
Usually, we ship by DHL in HK, but considering the inconsistent shipping fees in different countries, we will ship by FedEx, UPS, TNT, etc...
Airline and Ocean transportation; You can choose the shipping way you prefer. HERE.
